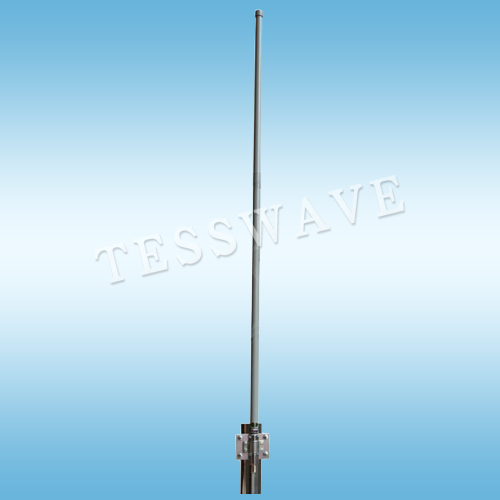

2.4 ghz omni directional antenna 12dbi with integrated N-female connector
| Price: | 10.0~20.0 USD |
| Payment Terms: | T/T,L/C,WU |
| Place of Origin: | Guangdong, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Freq-MHz: 2400-2483
Gain-dBi: 12
BW-°: E7 / H360
Polarization: Vertical
Applications
* 2.4GHz ISM Band
* 2.4GHz Wireless LAN Systems
* Multipoint Applications
* 2.4GHz ISM Band
* 2.4GHz Wireless LAN Systems
* Multipoint Applications
Features
* High gain, Low VSWR
* Sealed with high strength fiberglass tube
* Steel mounting kit
* Mast mounting
* Integral N female connector
* High gain, Low VSWR
* Sealed with high strength fiberglass tube
* Steel mounting kit
* Mast mounting
* Integral N female connector
| Electrical Specifications | |
| Model | TOF-2400-12V |
| Frequency Range-MHz | 2400-2483 |
| Bandwidth-MHz | 83 |
| Gain-dBi | 12 |
| VSWR | ≤1.5 |
| Polarization | Vertical |
| Vertical Beamwidth-° | 7 |
| Horizontal Beamwidth-° | 360 |
| Impedance-Ω | 50 |
| Maximum Power-W | 100 |
| Lighting protection | DC Ground |
| Mechanical Specifications | |
| Connector | N-Female or Customized |
| Antenna Dimension-mm | 1200 |
| Weight-kg | 1.2 |
| Mast Diameter -mm | Φ40 to 50 |
| Rated Wind Velocity-m/s | 60 |
| Working Temperature-℃ | -40~+60 |
