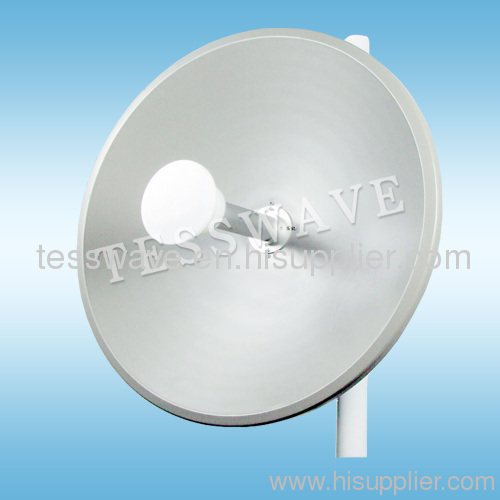

4.9-5.8GHz high gain dual polarity MIMO Dish antenna

Payment Terms: T/T,L/C,D/P,WU
Place of Origin: Guangdong, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: TSD-4958-34D9
Production Capacity: 5000pcs/month
Type: Outdoor
Frequency Range: 4900-5800MHz
Polarization: V and H
Means of Transport: Ocean,Land,Air
Packing: cartons
Brand Name: Tesswave
Gain: 34dBi
Connector: 2*N Female

Freq-MHz: 4900-5850
Gain-dBi: 2×34
Dimension-M: Φ0.9
Polarization: V and H

Applications
  • 5.1/5.3/5.4/5.8 GHz ISM and UNII Band Applications
  • 4.9 GHz Public Safety Band
  • MIMO and 802.11 n Applications
  • WiMAX Applications
  • Long Distance Backhaul and Point to Point Data Links
Features
  • Dual Polarity feed system
  • Wide Bandwidth
  • Aluminum reflector dish
  • UV Stable light gray polymer finish
  • Includes tilt and swivel mast mount kit
Electrical Specifications
ModelTSD-4958-34D9
Frequency Range-MHz4900-5850
Gain-dBi2×34
VSWR≤2.0
PolarizationVertical and horizontal (Dual Polarity)
F/B Ratio-dB≥35
Cross-pol Isolation-dB≥28
Horizontal Beamwidth-°3
Vertical Beamwidth-°3
Max power-W100
Nominal Impedance-Ω50
Lightning ProtectionDC Ground
Mechanical Specifications
Connector­­­2×N-Female or customized
Dimension-mmФ900
Weight-kg10
Mast Diameter-mmФ50 to 75
Operating temperature-℃-40~+65
Rated Wind Velocity-m/s60
